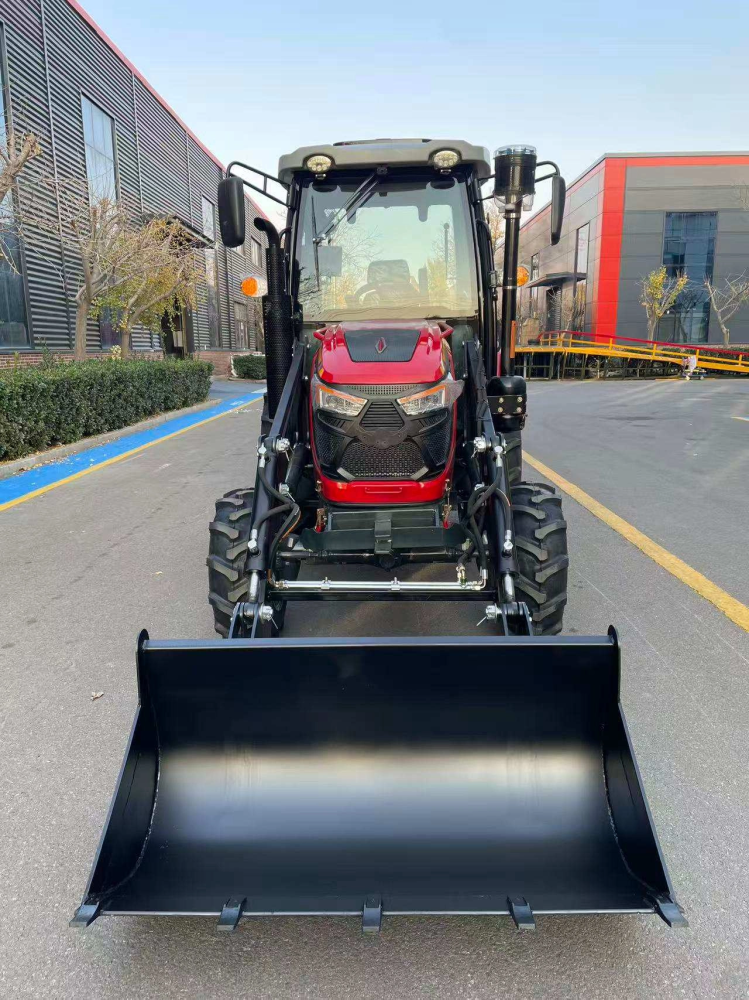

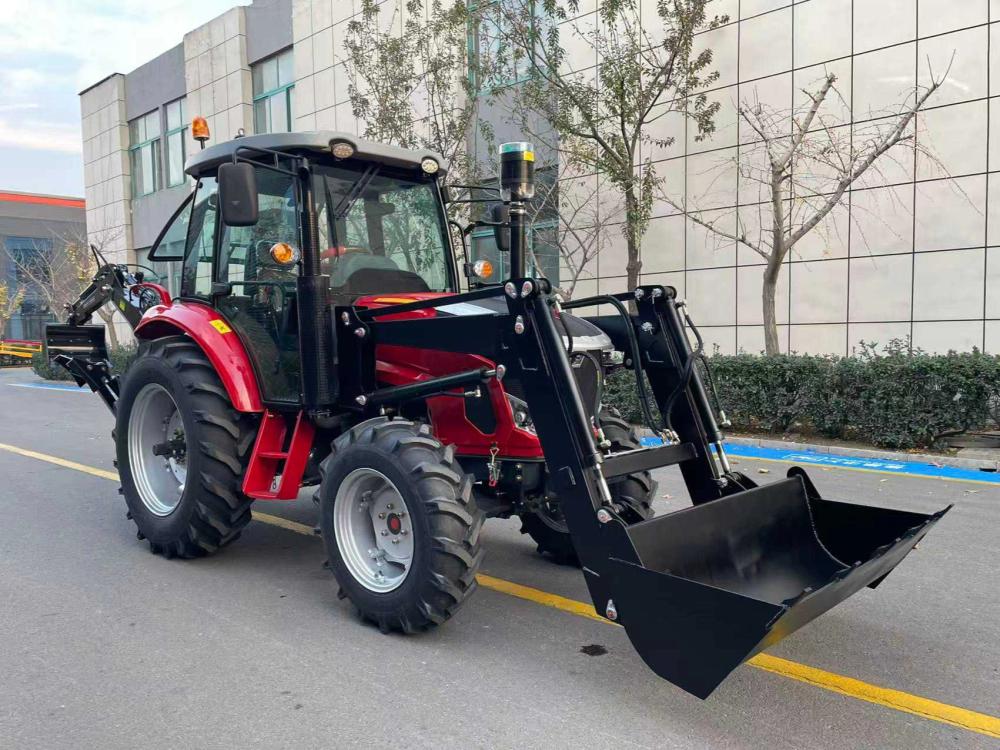

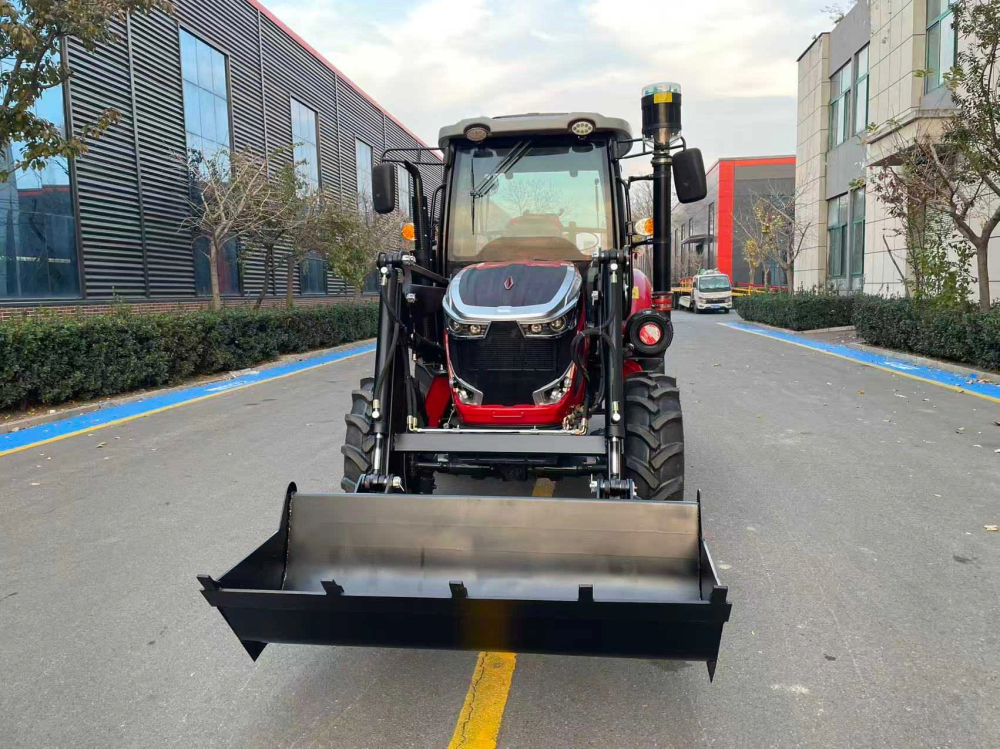

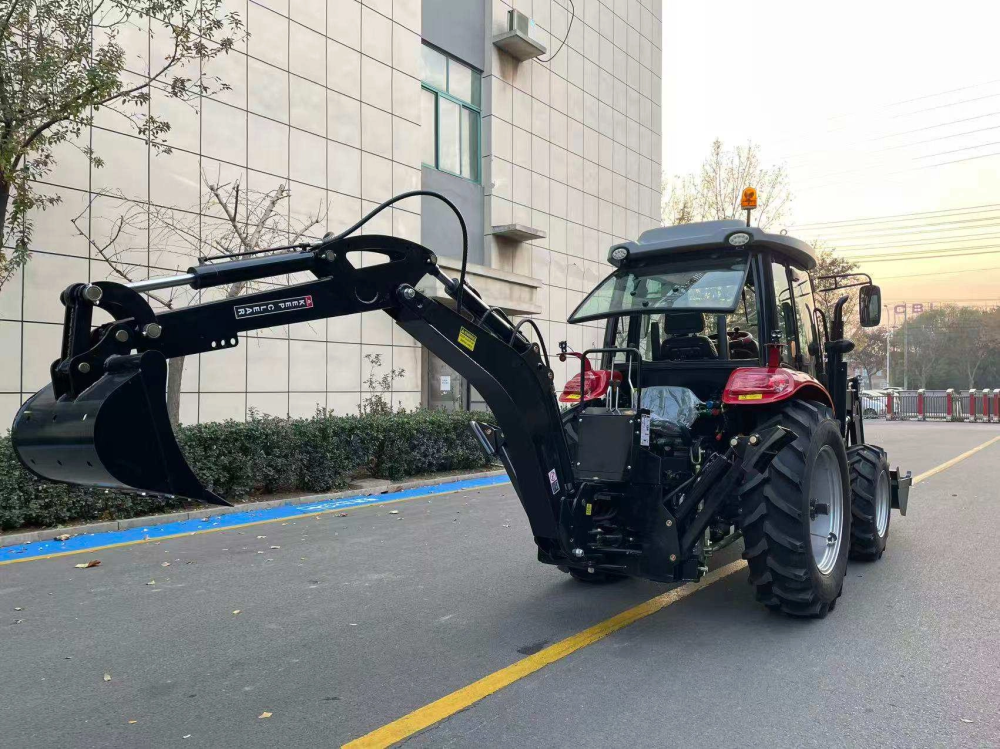

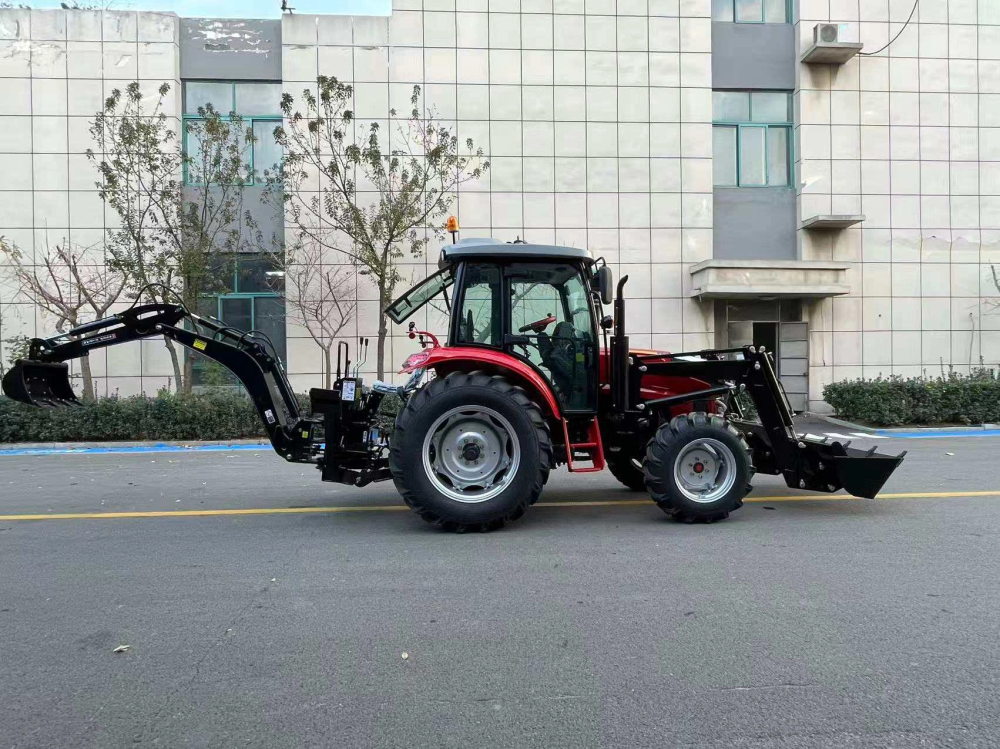

Agricultural tractor loader with excavator, 80 horsepower

1. Overall dimensions of the machine (length x width x

height mm): 4150 x 1835 x 2770 (safety frame)

2. Whole machine weight: 2940kg (safety frame);

3. Supporting power (kW): 58.8;

4. Type: four-wheel drive;

5. Wheelbase (mm): 2100;

6. Track width (front/rear wheels) (mm): 1345, 1445,

1545/1350-1600;

7. Minimum ground clearance (mm): 360;

8. PTO speed: 540/760;

9. Gear position (forward/reverse): 12/12;

10. Transmission type: 4 × 3 × (1+1) composition;

11. Big Tire model (front/rear): 11.2-20/14.9-30;

12. PTO output spline number: 6 keys；

13. Hydraulic suspension system type: Split type (strong lift

strong drop)

14. Engine brand and model: YTO

15.Two sets Hydraulic output；Equipped with front bumper

;Differential lock;Sunshade
